12W 36V Low blue light full spectrum China high power cob led supplier

বেসিক ইনফরমেশন
উৎপত্তি স্থল: চীন
পরিচিতিমুলক নাম: TYF
সাক্ষ্যদান: LM-80 Rohs
মডেল নম্বার: টিআর 2-1510 সি -1202 পি 7
ন্যূনতম চাহিদার পরিমাণ: 500
মূল্য: 0.47-0.55USD/PCS
বিস্তারিত তথ্য
বিশেষভাবে তুলে ধরা:

36V high power COB LED

,

12W full spectrum COB LED

,

low blue light COB LED chip


পণ্যের বর্ণনা

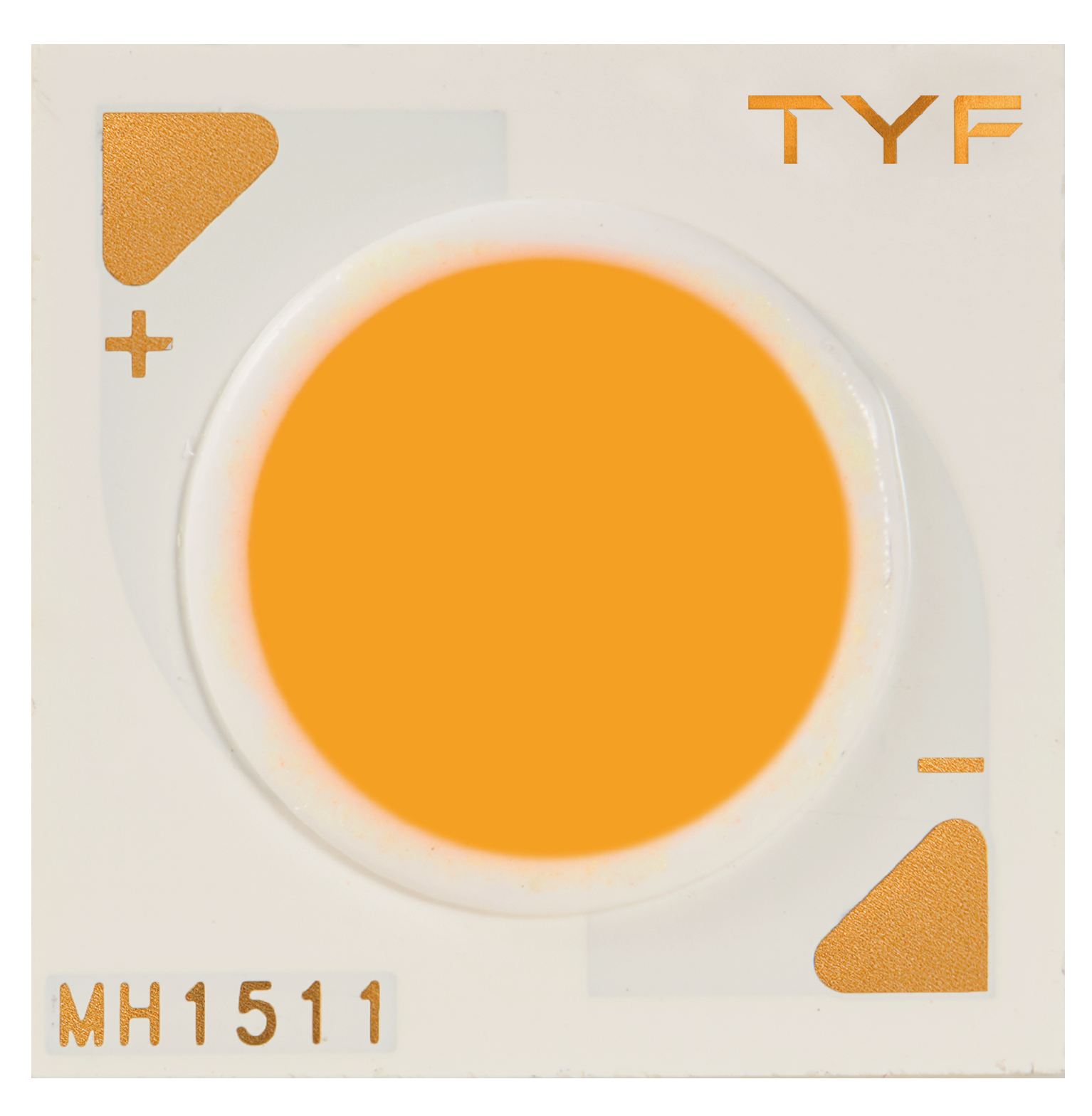

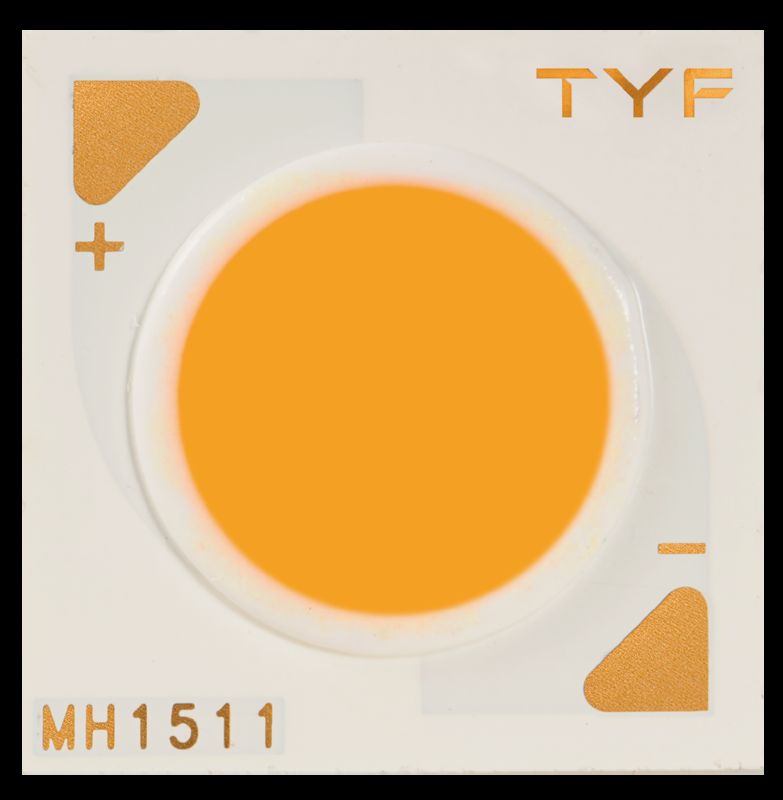

12W 36V Low Blue Light Full Spectrum High Power COB LED
Features
  • Available in 3-step, 2-step and 1.5-step EasyWhite® bins
  • Available in 70, 80, 90, 95 and 97 minimum Ra options
  • Low thermal resistance
  • RoHS and REACh compliant
Description

The TYF COB package has high efficacy, high Ra, low power consumption, wide viewing angle and a compact form factor. These features make the package an ideal LED for lighting applications.

Applications
  • Indoor General Lighting: Spotlights, Track Lights, Downlights
  • Industrial lighting: Floodlight, High bay light, Streetlight
Absolute Maximum Ratings
Power 10W - 15W
Forward Voltage 34 - 38 V
Forward Current 200 - 400 mA
Operating Temperature -40 - 85 ℃
Junction Temperature 125 ℃
Storage Temperature -40 - 105 ℃
ESD Sensitivity 2000 V
Reverse Voltage Reverse testing is not allowed
Reverse Current 5 uA
Soldering Temperature 350ºC/3-5sec ℃/S
